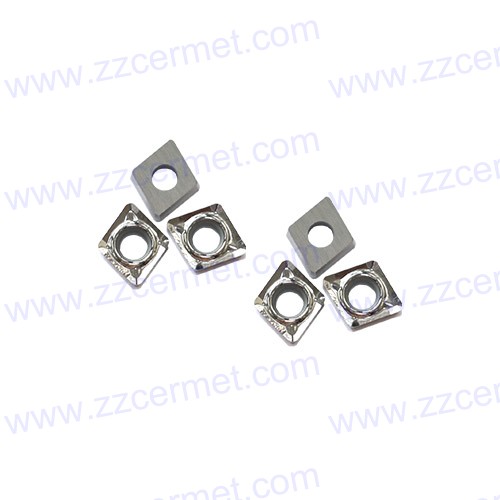

Cermet Indexable Turning Inserts CCGT

High Quality Cermet insert CCGT series turning inserts manufacturer.With Special strength and toughness.OEM and ODM acceptable.Unmarked or customized marking available.The common types are always in stock,Free sample available.

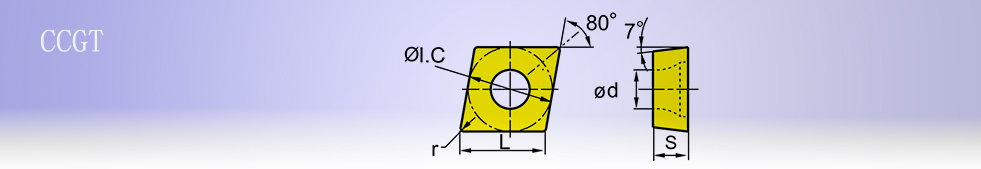

TYPE	Basic Dimension					Grade
	L	ΦI.C	S	Φd	r	ZZX	ZZC	ZZB
CCGT Series	6.4	6.35	2.38	2.8	0.4	◐	△	□
	6.4	6.35	2.38	2.8	0.8	◐	△	□
	9.7	9.525	3.97	4.4	0.2	◐	△	□
	9.7	9.525	3.97	4.4	0.4	◐	△	□
	9.7	9.525	3.97	4.4	0.8	◐	△	□
	6.4	6.35	2.38	2.8	0.1	◐	△	□
	6.4	6.35	2.38	2.8	0.2	◐	△	□
	6.4	6.35	2.38	2.8	0.4	◐	△	□
	9.7	9.525	3.97	4.4	0.1	◐	△	□
	9.7	9.525	3.97	4.4	0.2	◐	△	□
	9.7	9.525	3.97	4.4	0.4	◐	△	□

△Main grade and stock available □Choice grade and stock available ◐Produce according the order
TiCN based cermet, improved chemical stability and wear-resistant,with sharp cutting edge and chip-breaker, can get good surface no matter under high speed or low speed,suitable for steel, stainless steel and cast iron finishing.

Grade	ISO	Density(g/cm³)	Hardness(HRA)	TRS(N/mm²)	Referenced  Grade	Application
ZZC	P05-P20	6.6-6.8	92.5	≥1600	TN60,NS530,CT3000	Suitable for turning,be able to do finishing&semi-finishing for bearing.Carbon steel.low alloy steel
ZZX	P10-P30	6.8-7.1	92.5	≥2000	NX2525,NS740	Suitable for milling chining,excellent wear resistance,be able to do finishing@semi-finishing for hardness material
ZZB	P10-P40	6.9-7.2	91	≥2800		Mainly suitable for the production of bar,mold materials,semi-finishing milling tools
ZZM		6.4-6.6	90	≥2400		Suitable for corrosion-resistant mold material and high impact performance requirements of wear-resistant parts
ZZN		6.0-6.2	93	≥1500		Suitable for corrosion-resistant wear-resistant parts

Advantage:
1.More wear-resistance than tungsten carbide,hardness reach to HRA90-HRA93.
2.More abrasive resistance than tungsten carbide.
3.More better surface finish of the work-piece.
4.More environmentally friendly without cutting fluid when processing.
5.Professional cermet inserts factory since 2014.
6.Professional and strict inspection by trained workers.
7.Professional Technical Engineer with 30 years experience to solve all kinds of problems encountered in processing for customers.
8.Adequate stock to ensure fast delivery.
At our compay, we care about our customers as much as we care about life. If you have any questions, please do not hesitate to contact our sales by info@zzcermet.com.Our sales are standing by for you from Monday through Saturday.
