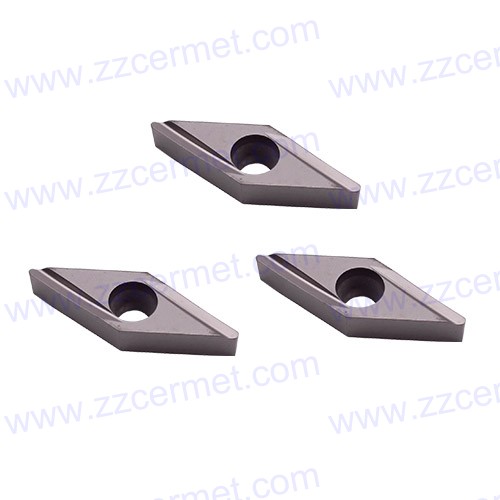

Cermet Indexable Turning Inserts-VBGT110302R/L-C

Model Number:VBGT110302R/L-C
Hardness:92.2 HRA
Certification: ISO 9001:2008
Usage: Cermet Indexable Turning Inserts

TYPE
Cermet Indexable Turning Inserts-VBGT110302R/L-C
Cermet Indexable Turning Inserts-VBGT110302R/L-C
Cermet Indexable Turning Inserts-VBGT110304R/L-C
QUICK DETAILS
Place of Origin:Hunan, China (Mainland) Brand Name:Bullo Model Number:SEET12T3-DF;
SEET12T3-DM;SEET12T3-DR;SEET12T3-LH;
Material:Titanium carbonitride Usage:Cermet Milling Inserts
Hardness:HRA 92.2 Grade: ZZC;ZZX
MOQ:100PCS Package:plastic box Certification:ISO 9001:2008
SUPPLY ABILITY
Supply ability:1000000PCS/Year
PACKAGING&DELIVERY
Packaging Details：10pcs/PVC box Port：ZhuZhou City,Hunan
Lead Time:20-25 days after order confirmed
MAINFEATURES&ADVANTAGES
Professional manufacturer over 6 years experience
With ISO9001: 2008 certification
Made by 100% raw material
Good quality with reasonable price
We have thousands of products in storage in different grades and type. Everything you expect is available.
Various delivery choice (DHL/ Fedex/ UPS/TNT/EMS), fast and safe
Flexible payment available: T/T, Paypal, Moneygram, western union,L/C.
GRADES&SPECIFICATION
TiCN based cermet, improved chemical stability and wear-resistant, Using with sharp cutting edge and chip-breaker, can get good surface no matter under high speed or low speed,suitable for steel, stainless steel and cast iron finishing.

Grade	ISO	Density(g/cm³)	Hardness(HRA)	TRS(N/mm²)	Referenced Grade	Application
ZZC	P05-P20	6.6-6.8	92.5	≥1600	TN60,NS530,CT3000	Suitable for turning,be able to do finishing&semi-finishing for bearing.Carbon steel.low alloy steel
ZZX	P10-P30	6.8-7.1	92.5	≥2000	NX2525,NS740	Suitable for milling machining,excellent wear resistance,be able to do finishing&semi-finishing for hardness material
ZZB	P10-P40	6.9-7.2	91	≥2800		Mainly suitable for the production of bar,mold materials,semi-finishing milling tools
ZZM		6.4-6.6	90	≥2400		Suitable for corrosion-resistant mold material and high impact performance requirements of wear-resistant parts
ZZN		6.0-6.2	93	≥1500		Suitable for corrosion-resistant wear-resistant parts

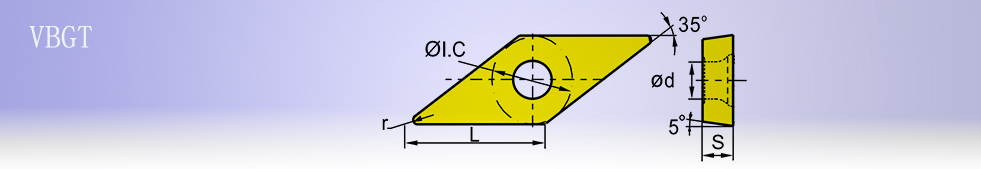

TYPE	Basic Dimension
TYPE	L	ΦI.C	S	Φd	r	ZZX	ZZC	ZZB
VBGT110302R/L-S	11	6.35	3.18	2.8	0.2	◐	△	□
VBGT110304R/L-S	11	6.35	3.18	2.8	0.4	◐	△	□
VBGT110301R/L-C	11	6.35	3.18	2.8	0.1	◐	△	□
VBGT110302R/L-C	11	6.35	3.18	2.8	0.2	◐	△	□
VBGT110304R/L-C	11	6.35	3.18	2.8	0.4	◐	△	□
VBGT160402R/L-P	16.6	9.525	4.76	4.4	0.2	◐	△	□
VBGT160404R/L-P	16.6	9.525	4.76	4.4	0.4	◐	△	□
VBGT160408R/L-P	16.6	9.525	4.76	4.4	0.8	◐	△	□
