Cermet Turning Inserts TNMG
Good impact toughness
Smooth chip removal
Wide range of application
Processing object:Semi-Finishing of steel,low-alloy steel
High Quality Cermet inserts TNMG series turning inserts manufacturer.With Special strength and toughness.OEM and ODM acceptable.Unmarked or customized marking available.The common types are always in stock,Free sample available.
|

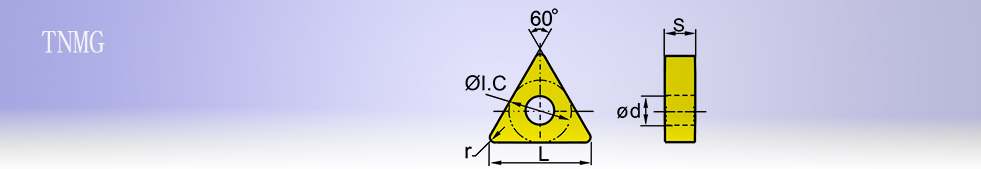

Type |
Basic Specification |
Grade |
||||||
| L |
ΦI.C |
S |
Φd |
r | ZCX | ZCC | ZCB | |
| TNMG Series | 16.5 | 9.525 | 4.76 | 3.81 | 0.2 |
◐ |
△ |
□ |
| 16.5 | 9.525 | 4.76 | 3.81 | 0.4 |
◐ |
△ |
□ |
|
| 16.5 | 9.525 | 4.76 | 3.81 | 0.8 |
◐ |
△ |
□ |
|
| Grade | ISO |
Density (g/cm3) |
Hardness (HRA) |
TRS (N/mm2) |
Referenced Grade | Application |
| ZCC | P05-P20 | 6.6-6.8 | 92.5 |
≥1600 |
TN60 NS530 CT3000 | Suitable for turning,be able to do finishing,semi-finishing for bearing.carbon steel.low alloy steel |
| ZCX | P10-P30 | 6.8-7.1 | 91.5 |
≥2000 |
NX2525 NS740 | Suitbable for milling Chining,excellent wear resistance,be able to do finishing,semi-finishing for high hardness material |
| ZCB | P10-P40 | 6.9-7.2 | 91 |
≥2800 |
|
Mainly suitable for the production of bar,mold materials,semi-finishing milling tools |
| ZCM |
|
6.4-6.6 | 90 |
≥2400 |
|
Suitable for corrosion-resistant mold materials and high impact performance requirements of wear-resistant parts |
| ZCN |
|
6.0-6.2 | 93 |
≥1500 |
|
Suitable for corrosion-resistant and wear-resistant parts |
Advantage of cermet insert
1.More wear-resistance than tungsten carbide,hardness reach to HRA90-HRA93.
2.More abrasive resistance than tungsten carbide.
3.More better surface finish of the work-piece.
4.More environmentally friendly without cutting fluid when processing.
5.Professional cermet inserts factory since 2014.
6.Professional and strict inspection by trained workers.
7.Professional Technical Engineer with 30 years experience to solve all kinds of problems encountered in processing for customers.
8.Adequate stock to ensure fast delivery.
