Carbide insert:VNMG
Usage:External/Internal turning tool
Hardness:≥HRA91
Workpiece:Steel,Stainless steel,Cast iron,Non-Ferrous material

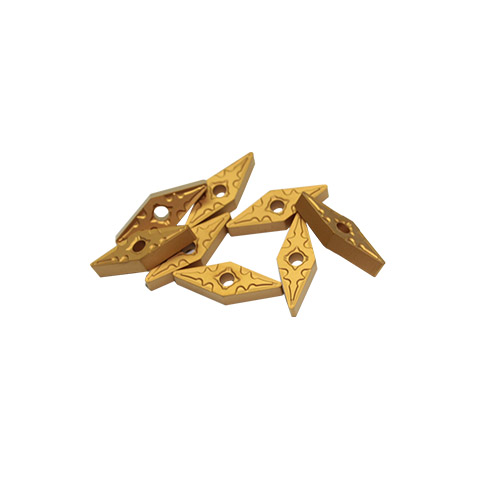

Carbide insert: VNMG160408
Usage:External/Internal turning tool
Hardness:≥HRA91
◎ Wide application range: suitable for any working environment.
◎ High cost performance: economical and value for money.
◎ Selected materials: wear resistance and high strength resistance.
◎ Precision machining: the process is qualified before leaving the factory.
Workpiece:
Steel, stainless steel, cast iron, non-ferrous metal, etc.
Advantages:
Factory direct, various types available, competitive price.
Packaging Details:
Inner package: plastic box for inserts,1 box with 10pcs;Plastic foam to avoid shaking on shipping.
Outer package: carton box
Port:Shenzhen,Shanghai

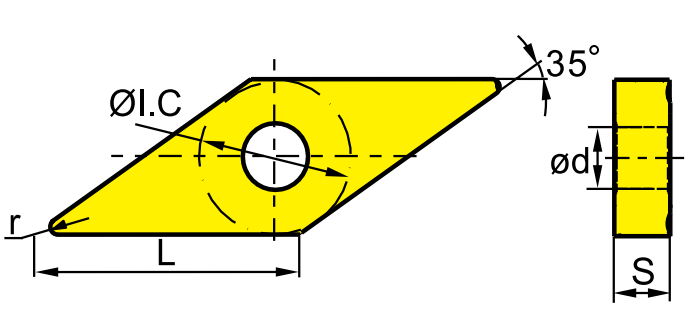

Type | L | ØI.C | S |
Ød |
r |
VNMG | 16.6 | 9.525 | 4.76 | 3.81 | 0.4 |
Grade | ISO | Density(g/cm3) | Bending strength(N/mm2) | Hardness | Application |
BL7226 | P30 | 13.7-14 | ≥1650 | ≥91 | This substrate material is of high strength and plastic deformation resistance which combined with MT-TiCN,thick Al2O3,TiN coating;It has good toughness and resistance of plastic deformation.It applys to rough machining of steel and stainless steel. |
Commonly used models: CNMG, DNMX, SNMG, DNMM, SNMM, TNMM, VNMG, TNMG, CCMT, WCMX, DNMG, SNUN, TNGA, WNMG, RNMG etc.
Our service:
1.Free samples are available.
2.We can produce products according to your drawings.
3.We can provide professional suggestions on products.
4.We can accept payment terms such as T/T ,Western Union , Paypal and etc.
5.We are a professional team and wait for you at any time.
Carbide inserts
Milling inserts
Carbide cutting tools
Carbide endmill
End mill
Carbide end mill
